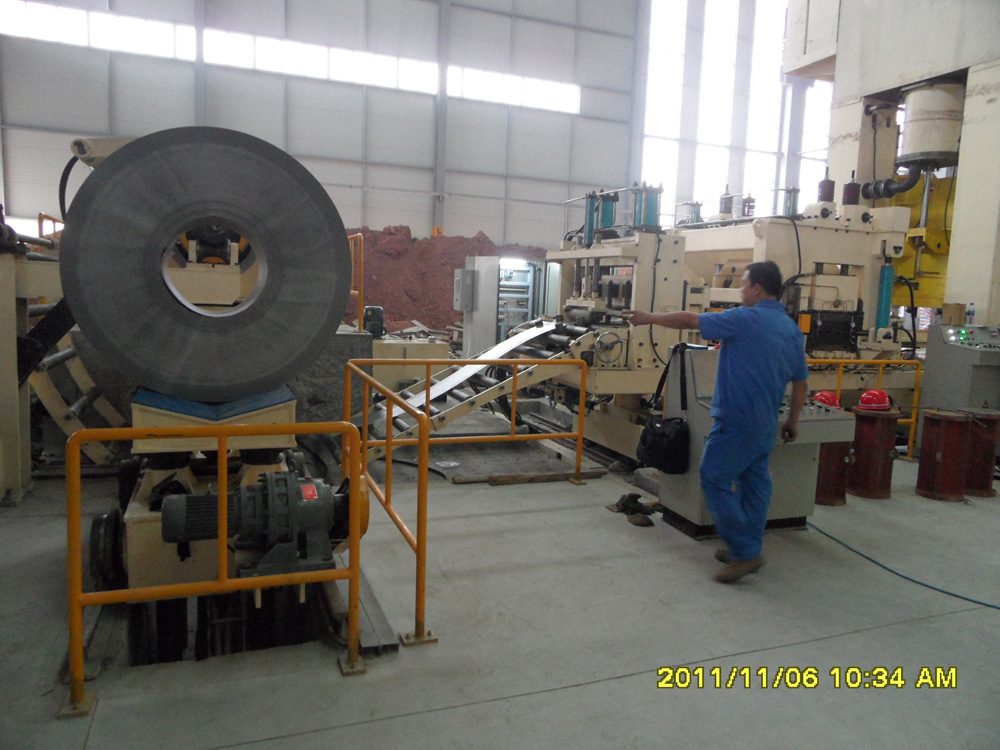

Equipment Overview
The unit is coiling uncoiling leveling feeding and blanking press 500T-3000T composed of blanking line.
For a roll of metal strip uncoiling, leveling, length of the feeding, oiling, stamping, aggregate production,
use scope of progressive products and for the other part of the blanking press.

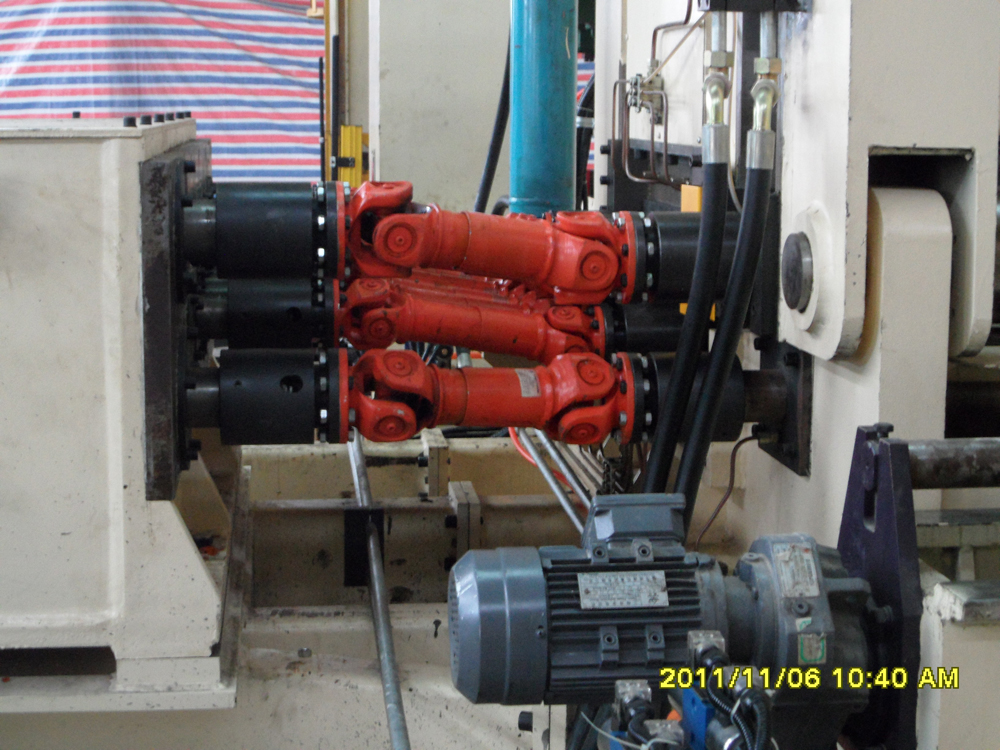

Pneumatic, hydraulic, AC servo system, PLC control. Stable performance,
good man-machine interface, safe and convenient operation.

Working process description

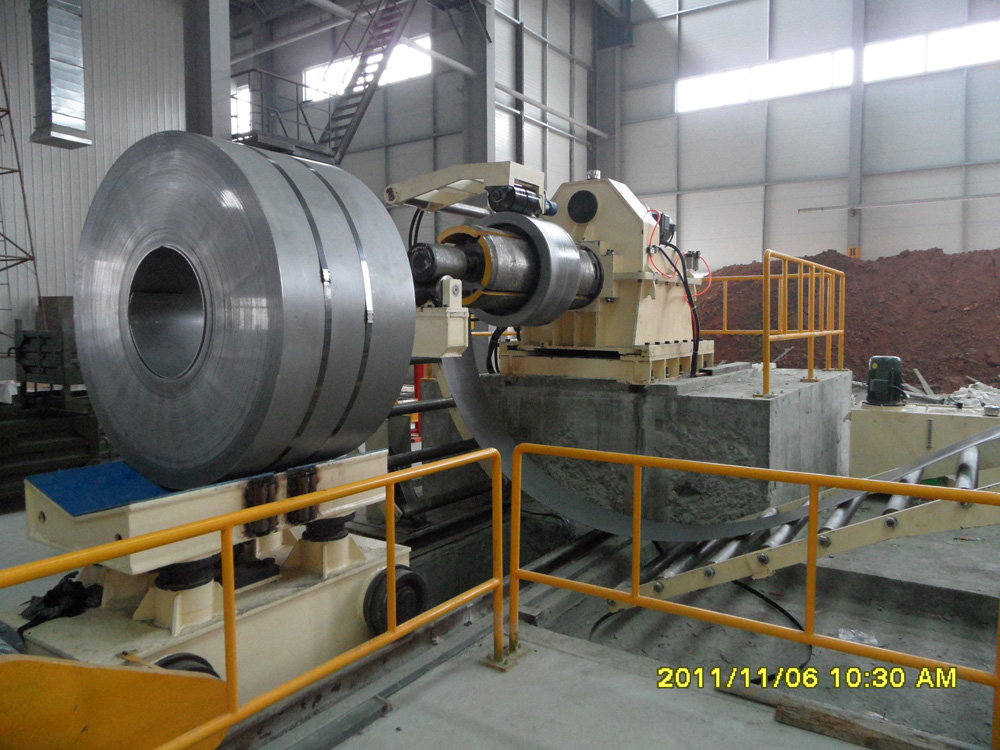

Feeding → Uncoiling → Casing → Leveling → Buffering →

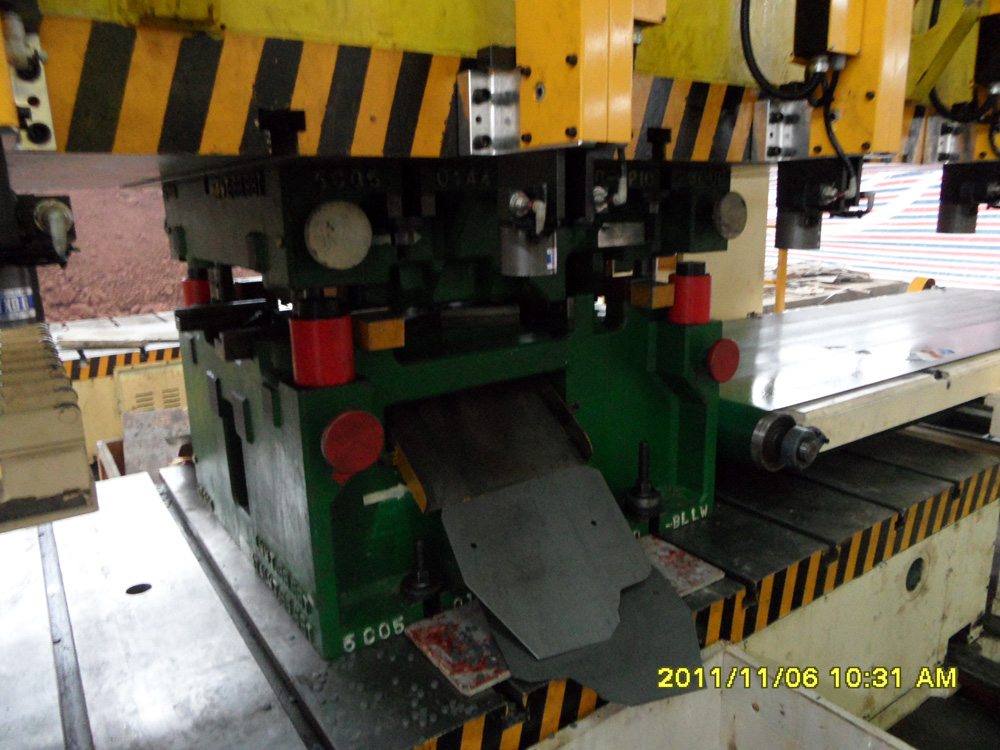

Orientation, NC Length Feeding → Oiling → Blending Press →

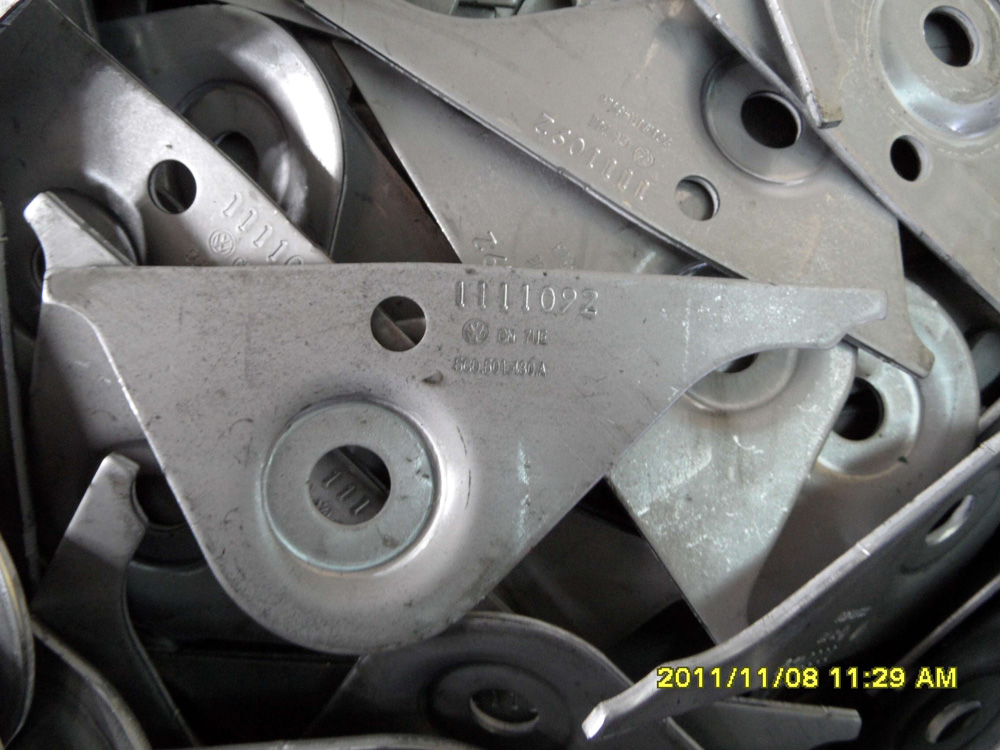

(Scrap Shear → Waste Collection) → Finished Product Delivery →
 Finished Product Collection

Main technical parameters

*Uncoiling leveling line

*Material parameters

Material: cold rolled steel plate, galvanized sheet, high strength cold rolled plate,
high strength hot rolled plate, hot rolled pickling plate
Y.S: ≤600 N/mm
Shear strength: ≤ 420 N/mm
Plate Thickness: 1.0 - 6.0 mm
Plate width: 100-2000 mm
weight: 10- 35T
Inner diameter: 508mm/610mm
Outer diameter: 900-1800 mm
Sheet leveling accuracy: ≤1.5mm/㎡
Sheet feeding step length: 30 ~ 2000
Feeding accuracy 100-1500mm: + 0.1mm/m
Feeding height (above ground): 1400mm, (mold feeding height: 600 + 150mm)
*production line speed

Loading speed: 0-10 m / min.

Leveling speed: 0 - 40 m/min
Feeding speed: 0 - 70 m/min.

MODEL	unit	ZZ-1300	ZZ-1600	ZZ-1850	ZZ-2000
width of material	mm	100-1300	100-1600	150-1850	200-2000
Thickness of material	mm	1.0-6.0	1.0-4.0	0.5-3.0	0.5-2.0
Max.clil weight	kg	10000	15000	25000	35000
Coil.ID	mm	508/610	508/610	508/610	508/610
Coil.OD	mm	1400	1600	1800	2200
Max.Speed	mm/min	10-70
Feed Length	mm	50-1250	100-1600	100-1850	200-2000
Work roll		Upper5/Lower6 - (Upper7/Lower8)
Uncoil expansion		Hydraulic
Feed roil number	group	1	1	1	1
Main moter	Kw	AC	AC	AC	AC
Uncoil mator	Kw	22	22	22	22
Straightening motor	Kw	75	75	75	75
Power supply	V	220-440
