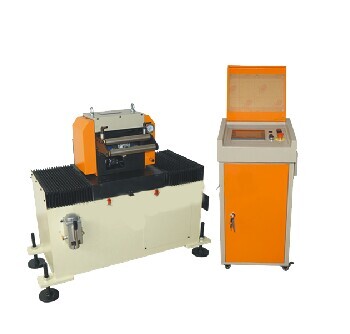

Characteristic
Suitable for the processing of symmetric and other types of processing, the partial swing movement and the feeding synchronization is completed, can save the material (single step) 3/4 above.
Shift sliding by high-speed linear bearings, guide rail with a special treatment, no noise, high wear resistance, load small friction, move fast and smoothly.
Partial discharge and feeding synchronization is completed, and the two dimension feed production efficiency is improved.
A microcomputer control system for servo (step motor).
Offset feeding times up to 30 times / minute.
Man machine interface control, simple operation.
The installation is simple and the signal is synchronized with the press.
This model is especially aimed at the circular products and the most common use of the material.
| Model TYPE |
Roller width (mm) |
Feeding form | Offset |
Material width (mm) |
Relax |
| OCP-100 | 100 | Standard feed offset feeding | Left right 50 | 0-2.0 | Pneumatic |
| OCP-200 | 200 | Standard feed offset feeding | Left right 100 | 0-2.0 | Pneumatic |
| OCP-300 | 300 | Standard feed offset feeding | Left right 150 | 0-2.0 | Pneumatic |
| OCP-400 | 400 | Standard feed offset feeding | Left right 200 | 0-2.0 | Pneumatic |
| OCP-500 | 500 | Standard feed offset feeding | Left right 250 | 0-2.0 | Pneumatic |
| OCP-600 | 600 | Standard feed offset feeding | Left right 300 | 0-2.0 | Pneumatic |
