The longitudinal cutting of the steel plate can be used for cutting various kinds of broadband volume cutting edge and cutting into different sizes.
Provide support for deep processing, is the modern industrial production in the pursuit of higher material utilization and production efficiency is essential for automatic processing equipment.
Two, structural description

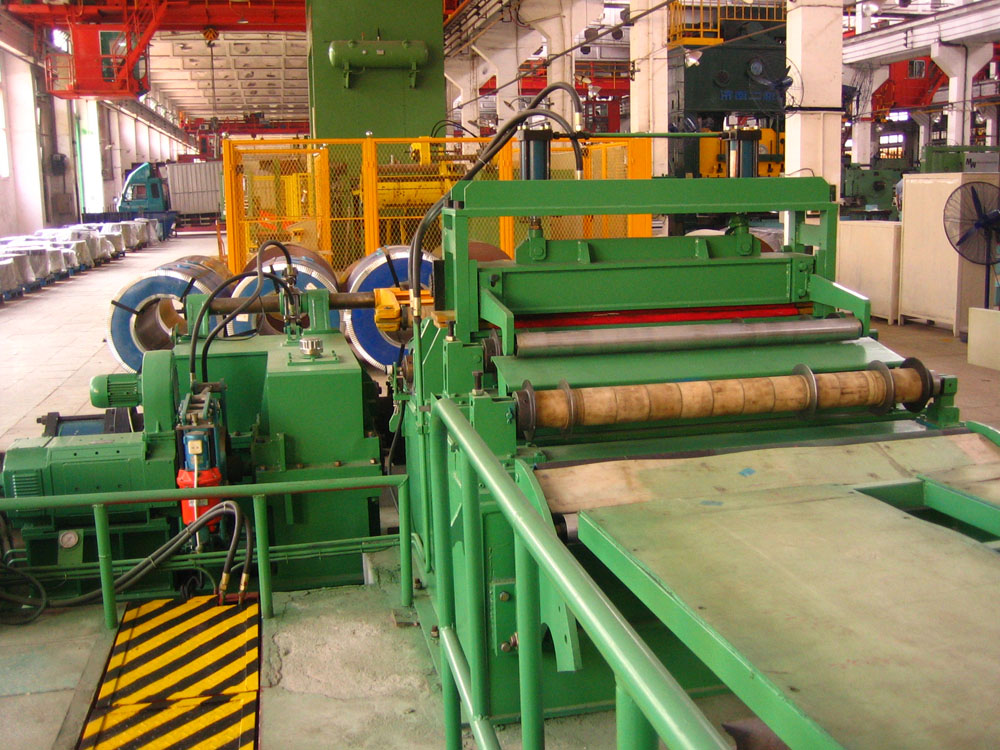

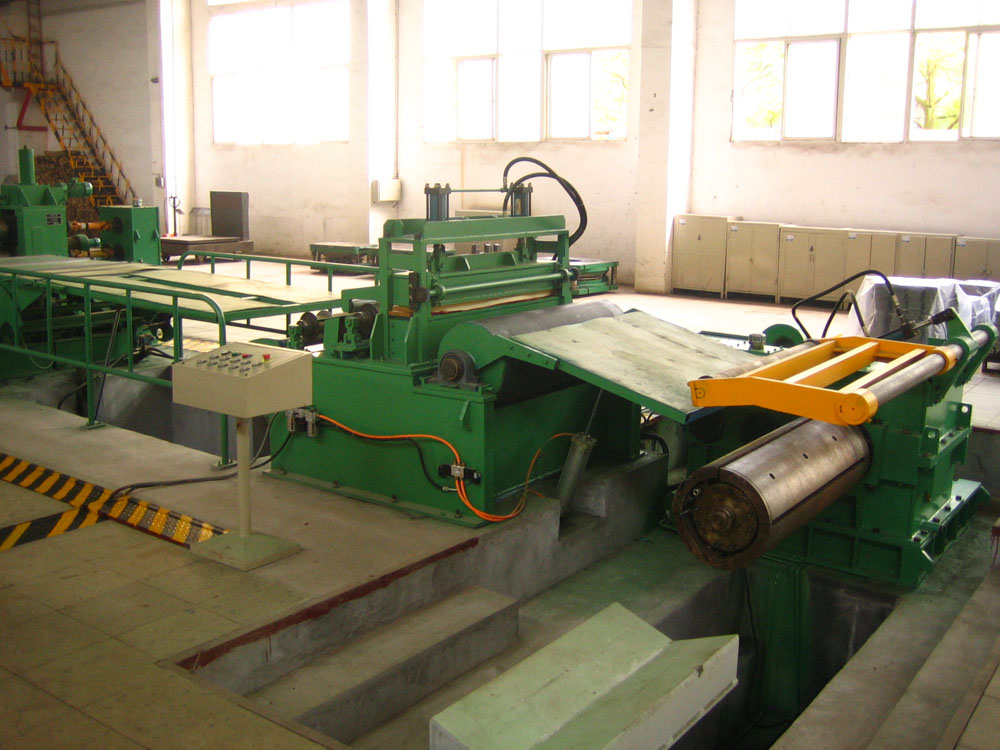

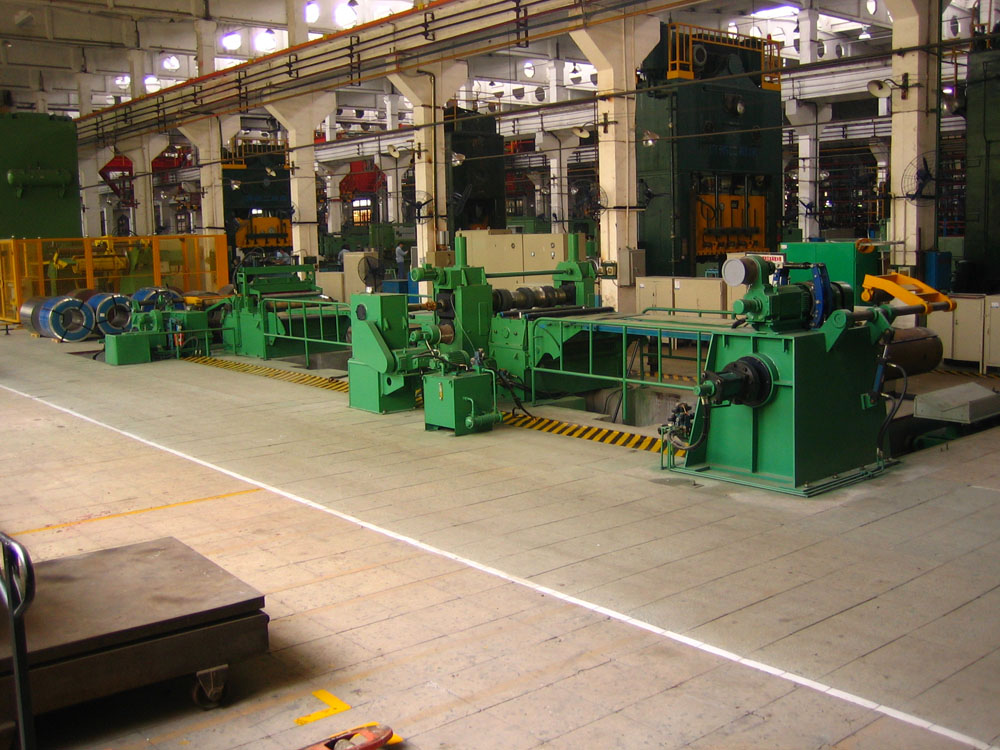

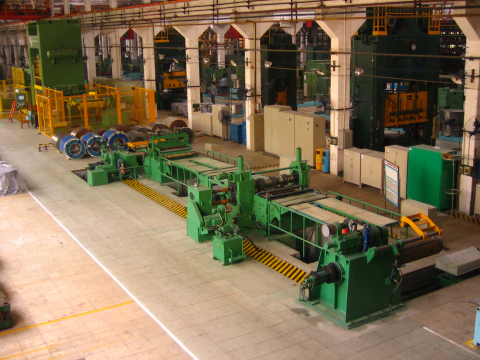

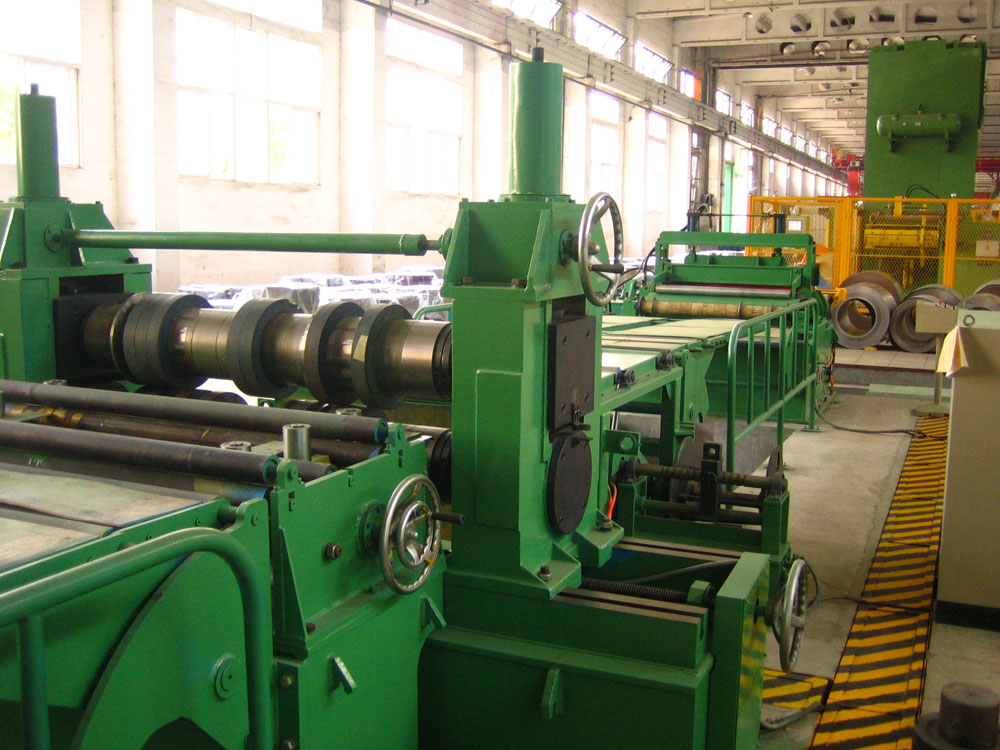

Composition: it is composed of feeding car, uncoiler, demolition of the entrainment feeding machine, leveling machine, looper, guiding device, a longitudinal shearing machine, looper tension, waste receiving material, Winder, unloading trolley;
High performance PLC programmable control system control;
Structural design of reliable hydraulic pneumatic system, high strength and high rigidity.
Three, classification
According to the thickness of the sheet, we divided the vertical shear units into thin plate series and vertical shear line, and the vertical shear of the thin plate series is divided into mechanical structure.
Type and hydraulic type.
Four, technical parameters
| No. | Commodity |
Raw material |
THK （mm） |
Width （mm） |
ID （mm） |
OD （mm） |
weight （T） |
Width accuracy （mm） |
Slits （pc） |
Slit tolerance （mm） |
Speed （m/min） |
Capacity （KW） |
Flood space （m） |
| 1 | 1.0*360 |
carbon steel, stainless steel, Alu and special steel |
0.1-1.0 | 100-360 |
Φ250/Φ300/ Φ400/Φ500 |
≤Φ1200 | ≤2.5 | ≤±0.05 | ≤12 | ≥6 | ≤60 | ≤45 | 8*3 |
| 2 | 1.2*500 | 0.15-1.2 | 100-500 | Φ300/Φ500 | ≤Φ1200 | ≤3 | ≤±0.05 | ≤14 | ≥20 | ≤120 | 80 | 8*3 | |
| 3 | 2.0*650 | 0.2-2.0 | 150-650 | Φ508/Φ610 | ≤Φ1500 | ≤6 | ≤±0.05 | ≤16 | ≥20 | ≤180 | 96 | 11*4 | |
| 4 | 2.0*850 | 0.25-2.0 | 200-850 | Φ508/Φ610 | ≤Φ1500 | ≤10 | ≤±0.05 | ≤16 | ≥20 | ≤180 | 96 | 11*4 | |
| 5 | 2.0*1000 | 0.2-2.0 | 300-1000 | Φ508/Φ610 | ≤Φ1500 | ≤15 | ≤±0.05 | ≤24 | ≥20 | ≤180 | 120 | 11*5 | |
| 6 | 2.0*1250 | 0.15-2.0 | 500-1250 | Φ508/Φ610 | ≤Φ1500 | ≤15 | ≤±0.05 | ≤24 | ≥20 | ≤180 | ≤160 | 12*6 | |
| 7 | 2.0*1600 | 0.2-2.0 | 500-1600 | Φ508/Φ610 | ≤Φ1500 | ≤20 | ≤±0.05 | ≤32 | ≥20 | ≤200 | 240 | 22*7 | |
| 8 | 3.0*650 | 0.2-3.0 | 200-650 | Φ508/Φ610 | ≤Φ1500 | ≤15 | ≤±0.05 | ≤12 | ≥20 | ≤150 | 180 | 22*7 | |
| 9 | 3.0*1250 | 0.3-3.0 | 500-1250 | Φ508/Φ610 | ≤Φ1500 | ≤15 | ≤±0.05 | ≤12 | ≥20 | ≤180 | 205 | 22*6.5 | |
| 10 | 3.0*1600 | 0.4-3.0 | 600-1600 | Φ508/Φ610 | ≤Φ1500 | ≤25 | ≤±0.05 | ≤24 | ≥30 | ≤120 | 230 | 23*8.5 |
