The longitudinal cutting and cutting edge of the steel plate can be cut into different sizes of the narrow band and cut into different sizes. It has a high accuracy of vertical cutting width. It is essential for the production of high material utilization ratio and production efficiency.
Two, structural description

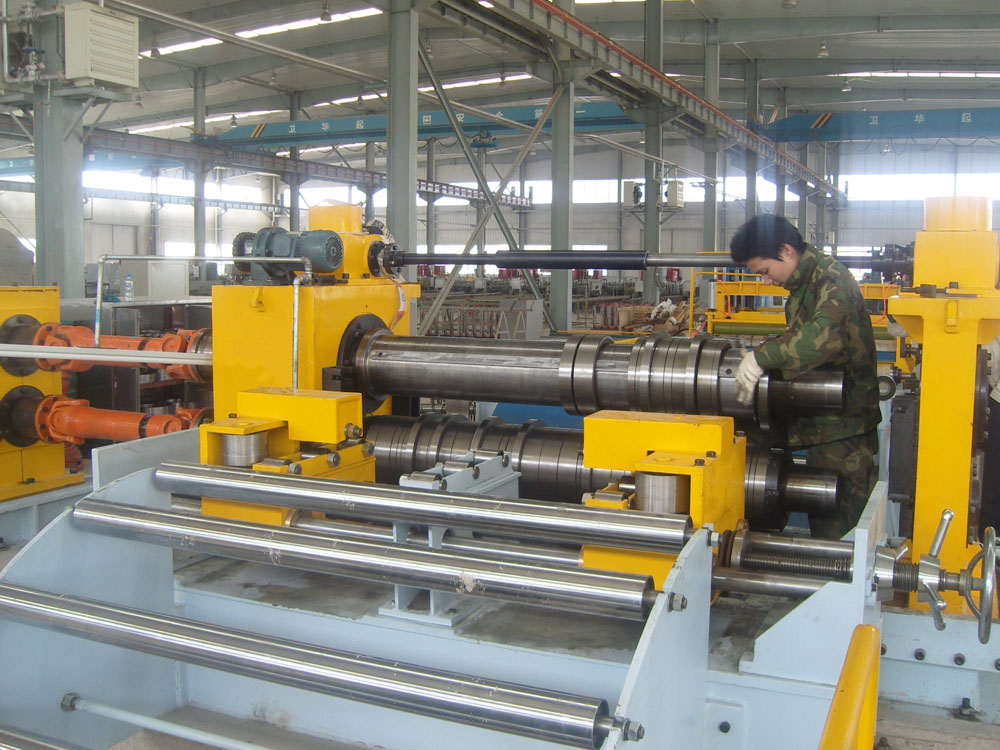

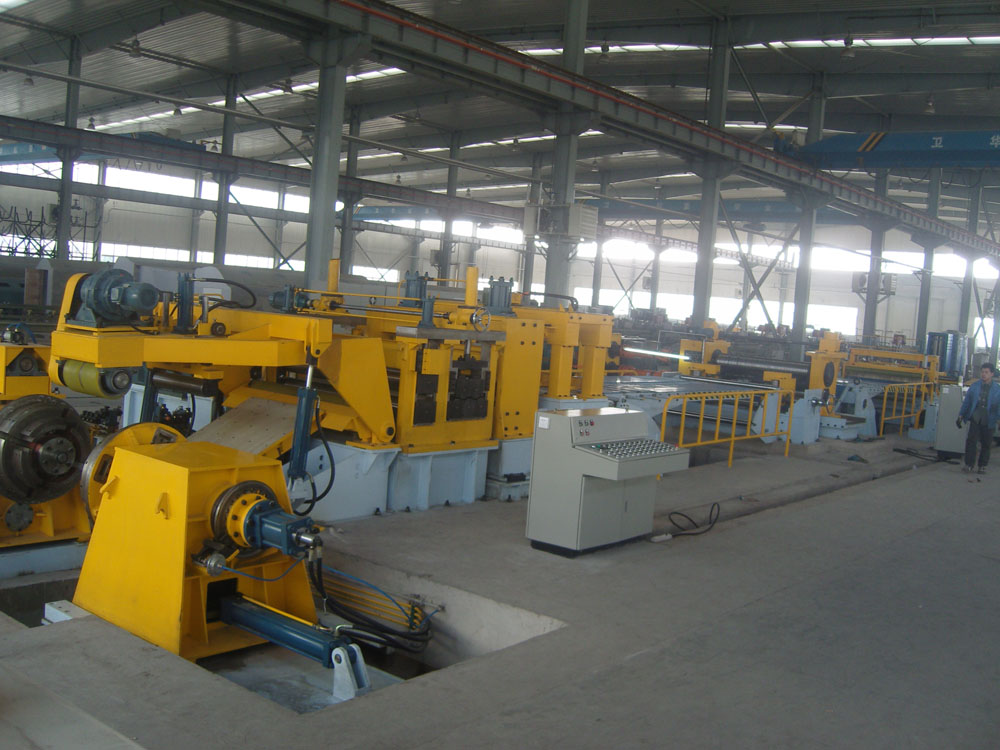

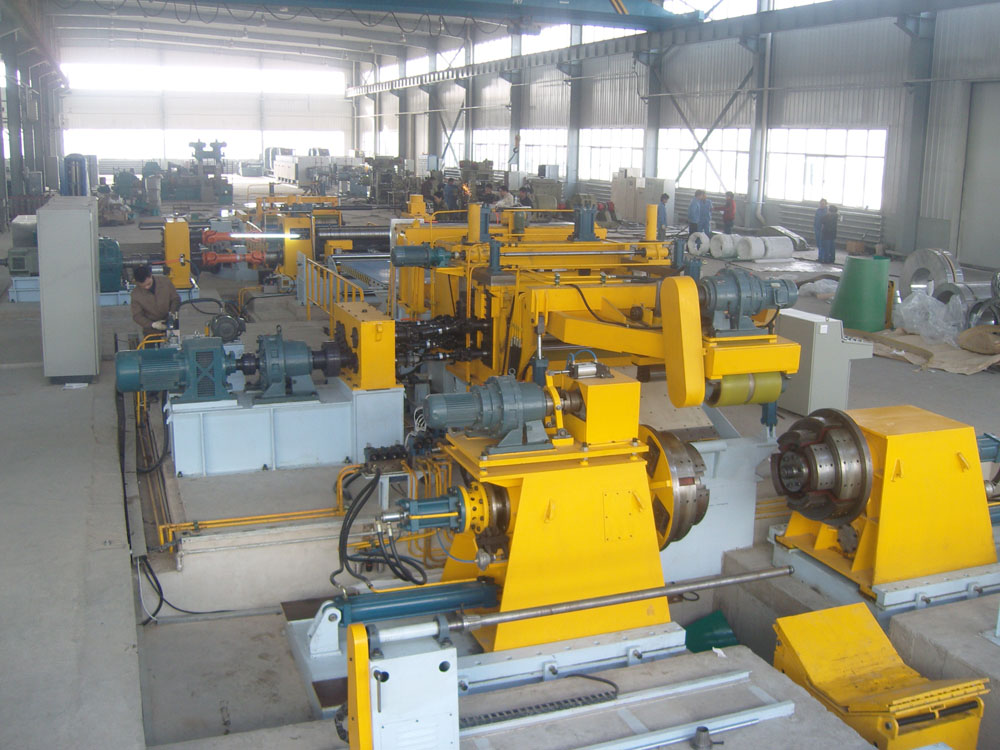

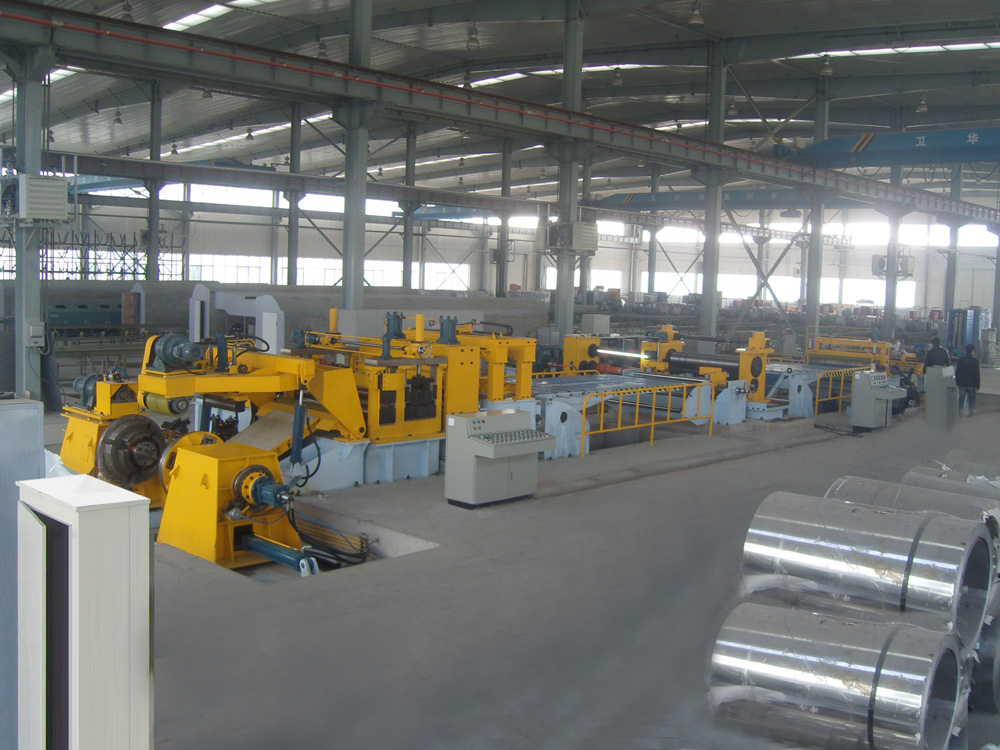

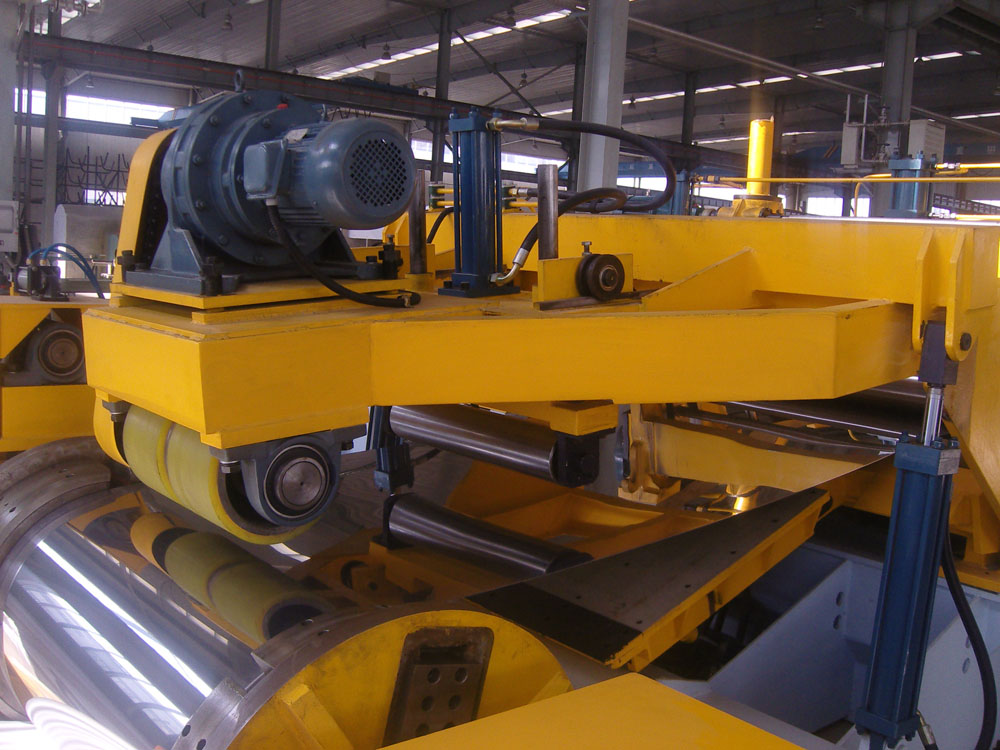

Composition: it is composed of feeding car, uncoiler, demolition of the entrainment feeding machine, leveling machine, looper, guiding device, a longitudinal shearing machine, looper tension, waste receiving material, Winder, unloading trolley;
High performance PLC programmable control system control;
Structural design of reliable hydraulic pneumatic system, high strength and high rigidity.
Three, classification
According to the thickness of the sheet, we divided the vertical shear units into thin plate series and vertical shear line, and the vertical shear of the thin plate series is divided into mechanical and hydraulic type.
Four, technical parameters
| No. |
Commodity |
Raw material |
THK （mm） |
Width （mm） |
ID （mm） |
OD （mm） |
weight （T） |
Width accuracy （mm） |
Slits （pc） |
Slit tolerance （mm） |
Speed （m/min） |
Capacity （KW） |
Flood space （m） |
| 1 | 4.0*1600 | carbon steel, stainless steel, Alu and special steel | 0.5-4.0 | 800-1600 | Φ508/Φ610 | ≤Φ1500 | ≤25 | ≤±0.1 | ≤24 | ≥30 | ≤120 | ≤220 | 25*7.5 |
| 2 | 6.0*800 | 1.0-6.0 | 200-800 | Φ508/Φ610/Φ760 | ≤Φ1500 | ≤15 | ≤±0.1 | ≤24 | ≥30 | ≤60 | ≤220 | 15*5.5 | |
| 3 | 6.0*1600 | 1.0-6.0 | 800-1600 | Φ508/Φ610/Φ760 | ≤Φ1500 | ≤25 | ≤±0.1 | ≤24 | ≥40 | ≤50 | ≤220 | 28*10.5 | |
| 4 | 9.0*1600 | 2.0-9.0 | 800-1600 | Φ508/Φ610/Φ760 | ≤Φ2000 | ≤25 | ≤±0.1 | ≤12 | ≥60 | ≤40 | ≤265 | 28*10 | |
| 5 | 12*2000 | 3.0-12.0 | 1000-2000 | Φ508/Φ610/Φ760 | ≤Φ2000 | ≤35 | ≤±0.5 | ≤10 | ≥200 | ≤20 | ≤285 | 36*10 | |
| 6 | 16*2200 | 4.0-16.0 | 1000-2200 | Φ508/Φ610/Φ760 | ≤Φ2000 | ≤35 | ≤±0.5 | ≤10 | ≥200 | ≤20 | ≤285 | 36*10 |
