Steel plate leveling flying cut sets with tracking function of shearing plate, will all rolled material after uncoiling, leveling, tracking fixed length cut into sheets of different specifications to ensure sheet at a set speed cutting to length, effectively improve the production efficiency of the production line. The sheet cutting board behind the set can increase the aggregate system will cut a pile length collection. Applicable to the container, machinery manufacturing, home appliances, automotive, stainless steel products, light industry and other industries.

Two, structural description

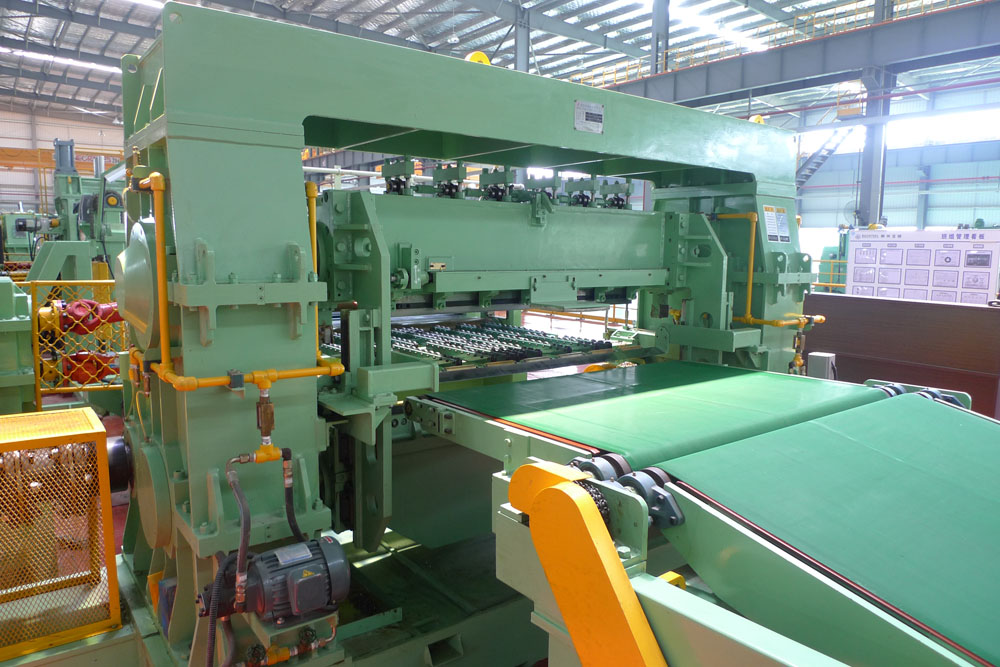

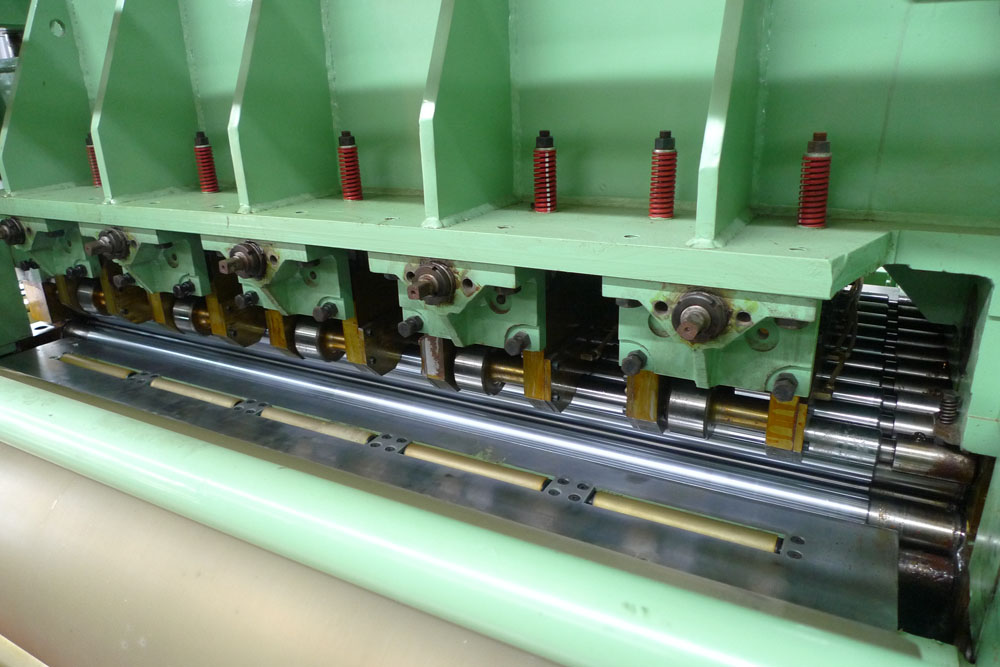

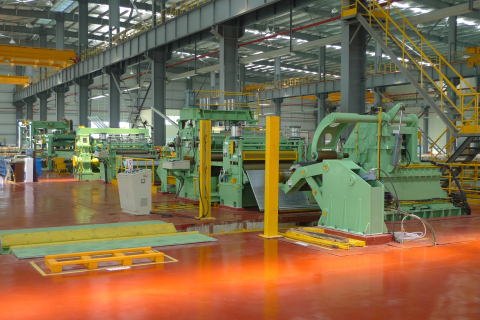

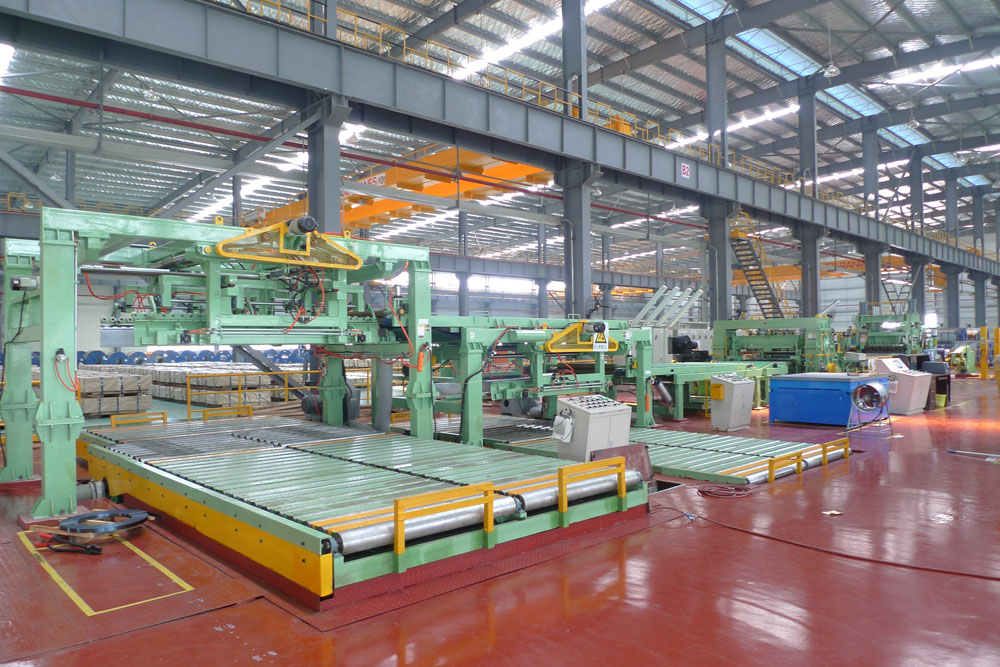

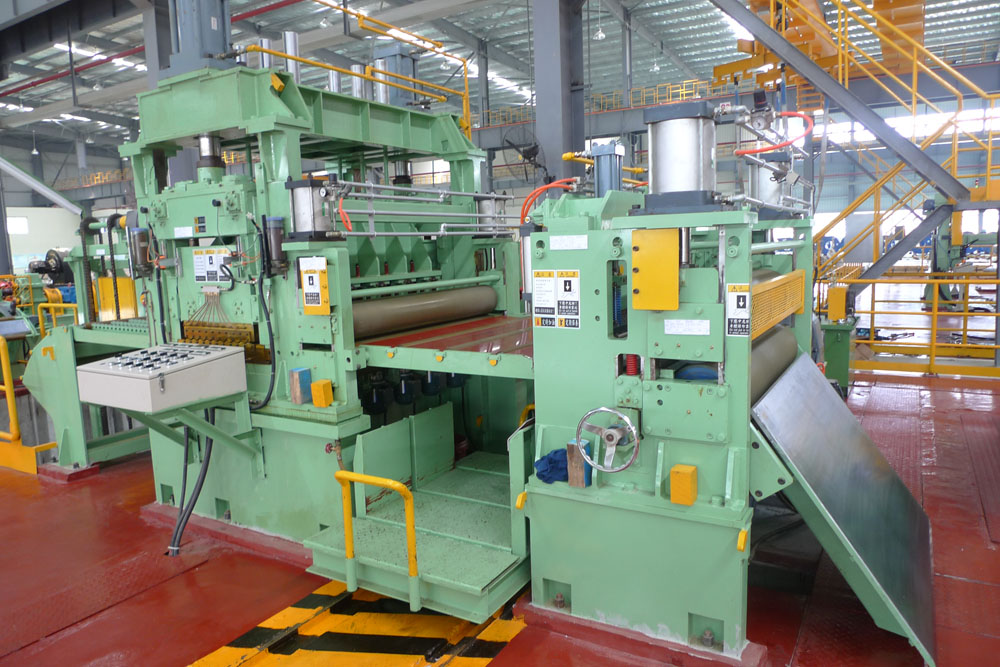

Mechanical composition: feeding car, uncoiler, demolition of entrainment feeding machine, leveling machine, (loop) and sizing device, flying shear, conveyor, chopping boards set feeding system.

Electrical system: the whole line adopts high performance PLC programmable control system, the closed-loop control mode; flying shear automatic matching shear speed, high sensitivity, high accuracy.

Hydraulic system: the whole line is a good and reliable hydraulic system, the configuration of the domestic and foreign well-known hydraulic components, to meet the high strength, high stiffness of the mechanism design concept.
