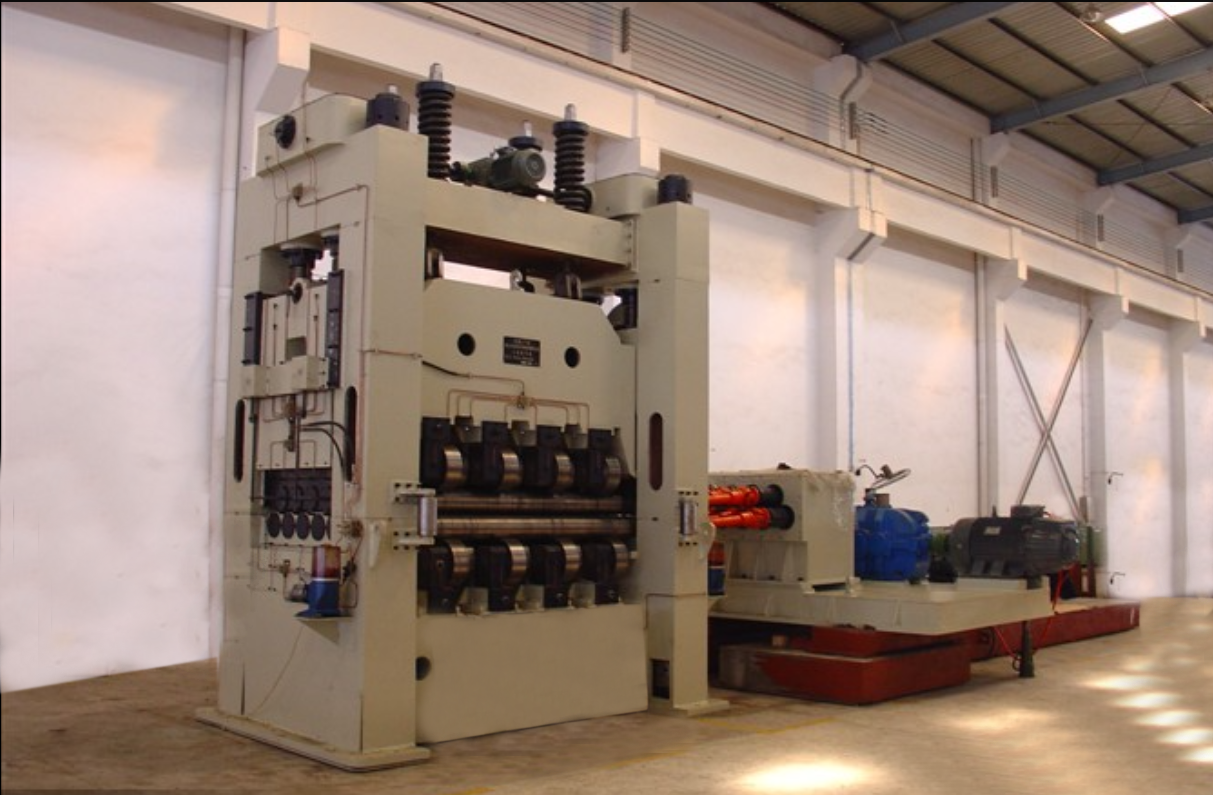

The frame is a frame or four prestressed frame structure;
Work roll surface has a high strength, stiffness, surface hardness and processing accuracy;
On the bottom, a supporting roller supporting roller;
| Model |
Max leveling thickness （mm） |
Min level thickness （mm） |
Max leveling Width （mm） |
Yield Strength Mpa | Leveling roller diameter（mm） |
Leveling rollers distace （mm） |
Number of leveling roller （n） | Leveling speed（m/rain） |
Motor （kw） |
Dimension (m) |
| W43S-1.5*1000 | 1.5 | 0.6 | 1000 | 245 | 38 | 40 | 21 | 6 | 5.5 | 3.5*1.1*1.5 |
| W43S-2*1250 | 2 | 0.6 | 1250 | 245 | 48 | 50 | 19 | 10 | 7.5 | 3.8*1.2*1.8 |
| W43S-3*1250 | 3 | 0.6 | 1250 | 245 | 60 | 65 | 19 | 10 | 15 | 4.3*1.3*1.9 |
| W43S-3*1600 | 3 | 0.7 | 1600 | 245 | 70 | 75 | 17 | 9 | 15 | 5.2*1.7*2.2 |
| W43S-4*1600 | 4 | 0.8 | 1600 | 245 | 75 | 80 | 15 | 9 | 22 | 5.3*1.6*2.2 |
| W43S-6*1600 | 6 | 1.5 | 1600 | 345 | 95 | 100 | 13 | 9 | 30 | 5.8*1.6*2.8 |
| W43S-6*2000 | 6 | 1.5 | 2000 | 345 | 95 | 100 | 13 | 9 | 37 | 7*1.6*3.2 |
| W43S-8*2000 | 8 | 2 | 2000 | 345 | 120 | 125 | 13 | 8 | 37 | 7*1.7*3.5 |
| W43S-10*2000 | 10 | 2.5 | 2000 | 345 | 140 | 150 | 13 | 9 | 45 | 7.2*1.9*4 |
| W43S-12*1600 | 12 | 3 | 1600 | 345 | 140 | 150 | 13 | 9 | 45 | 6.6*1.9*4 |
| W43S-12*2000 | 12 | 3 | 2000 | 345 | 150 | 160 | 11 | 9 | 55 | 7.1*2*4.1 |
| W43S-12*2500 | 12 | 3 | 2500 | 345 | 150 | 160 | 11 | 9 | 63 | 7.6*2*4.3 |
| W43S-12*3200 | 12 | 4 | 3200 | 345 | 160 | 180 | 11 | 7 | 63 | 7*2.15*4.5 |
| W43S-16*1600 | 16 | 4 | 1600 | 345 | 160 | 180 | 11 | 7 | 63 | 7.5*2*4.2 |
| W43S-16*2000 | 16 | 4 | 2000 | 345 | 180 | 200 | 11 | 8 | 75 | 8.1*2.2*4.6 |
| W43S-16*2500 | 16 | 4 | 2500 | 345 | 180 | 200 | 11 | 7 | 75 | 8.6*2.2*4.8 |
| W43S-16*3200 | 16 | 4 | 3200 | 345 | 180 | 200 | 11 | 7 | 75 | 9.2*2.3*4.9 |
| W43S-20*2000 | 20 | 5 | 2000 | 345 | 200 | 220 | 9 | 7 | 63 | 9.2*2.5*4.9 |
| W43S-20*2500 | 20 | 5 | 2500 | 345 | 220 | 250 | 9 | 7 | 75 | 9.8*2.5*4.9 |
| W43S-20*3200 | 20 | 5 | 3200 | 345 | 220 | 250 | 9 | 6 | 75 | 10.5*2.5*5.2 |
| W43S-25*2000 | 25 | 6 | 2000 | 345 | 220 | 250 | 9 | 6 | 75 | 9.3*2.5*5 |
| W43S-25*2500 | 25 | 6 | 2500 | 345 | 220 | 250 | 9 | 6 | 75 | 9.8*2.5*5.1 |
| W43S-25*3200 | 25 | 6 | 3200 | 345 | 260 | 300 | 9 | 7 | 90 | 10.6*2.6*5.3 |
| W43S-30*2000 | 30 | 6 | 2000 | 345 | 260 | 300 | 9 | 7 | 90 | 9.3*2.6*5.2 |
| W43S-30*2500 | 30 | 6 | 2500 | 345 | 260 | 300 | 9 | 7 | 90 | 9.8*2.6*5.3 |
| W43S-30*3200 | 30 | 8 | 3200 | 345 | 260 | 300 | 9 | 6 | 110 | 10.4*2.65*5.5 |
