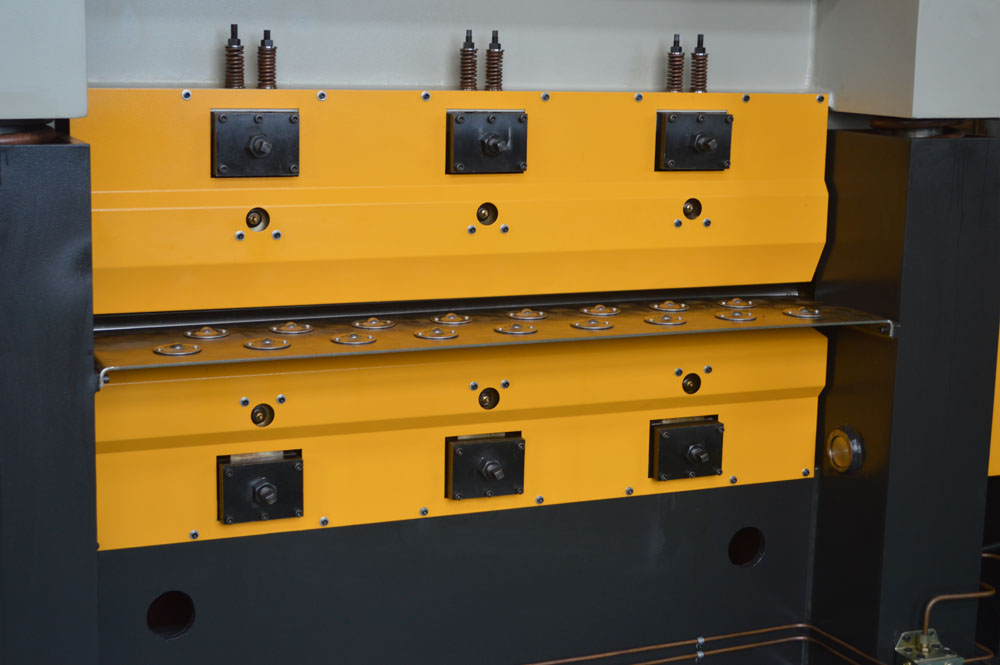

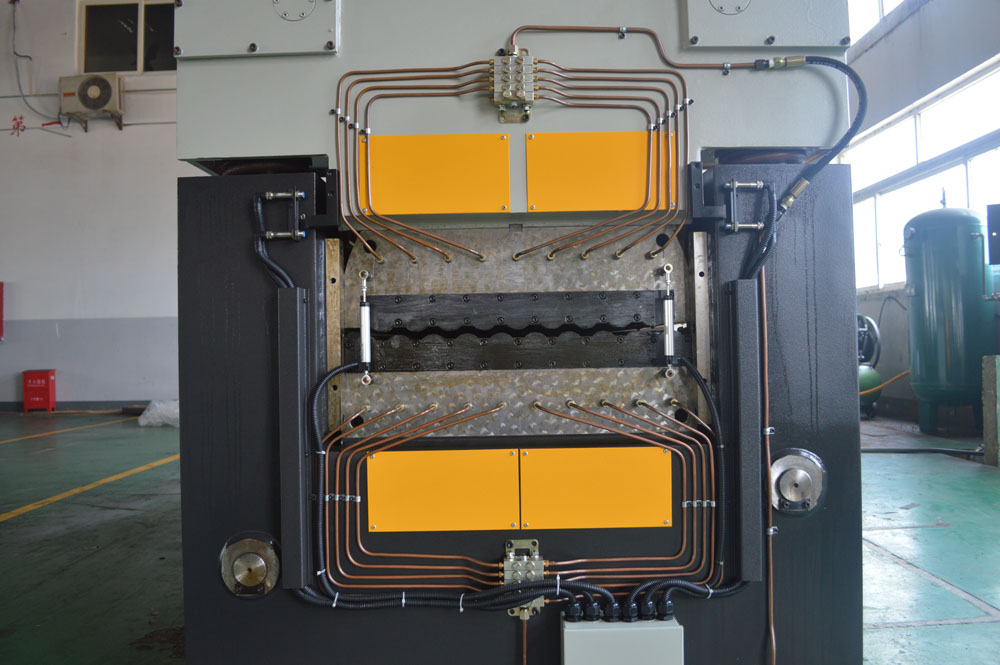

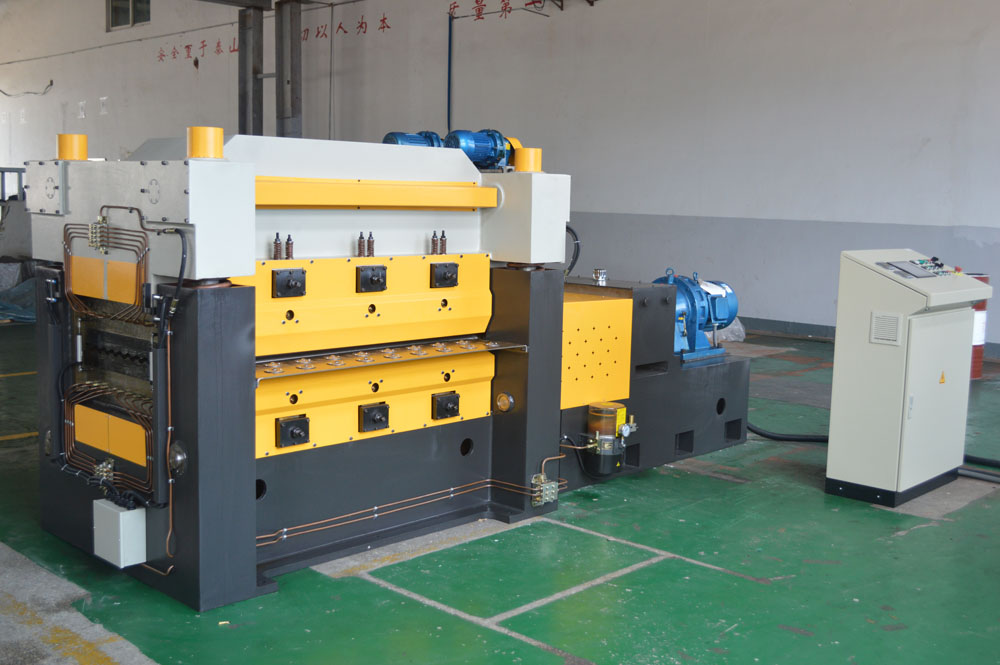

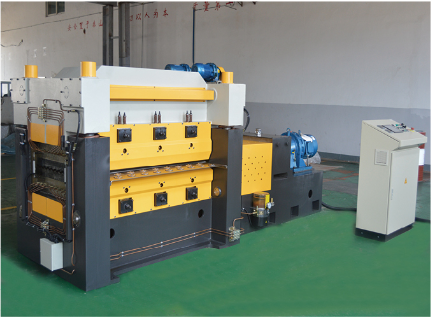

Six the characteristics of heavy type roller leveling machine:
Frame is a frame structure, with high strength and good rigidity.
Surface protection of high processing materials;
Has a high school level accuracy;
Single - sided three - level roll: support roll, intermediate roll, work roll.
Digital display, PLC control, visual input, edit, modify, storage process parameters.
Six roller type leveling machine for the industry's most advanced equipment.
| Model |
Max leveling thickness （mm） |
Min level thickness （mm） |
Max leveling Width （mm） |
Yield Strength Mpa | Leveling roller diameter（mm） |
Leveling rollers distace （mm） |
Number of leveling roller （n） |
Leveling speed （m/rain） |
Motor （kw） |
Dimension (m) |
| W43S-1.5*1000 | 1.5 | 0.6 | 1000 | 245 | 38 | 40 | 21 | 6 | 5.5 | 3.5*1.1*1.5 |
| W43S-1.5*1500 | 1.5 | 0.6 | 1500 | 245 | 48 | 50 | 21 | 6 | 7.5 | 4.3*1.19*1.5 |
| W43S-2*800 | 2 | 0.6 | 800 | 360 | 48 | 50 | 21 | 6 | 7.5 | 3.1*1.19*1.5 |
| W43S-2*1250 | 2 | 0.6 | 1250 | 245 | 48 | 50 | 19 | 10 | 7.5 | 3.8*1.2*1.8 |
| W43S-2.5*1250 | 2.5 | 0.6 | 1250 | 240 | 50 | 55 | 19 | 8 | 7.5 | 4.3*1.2*1.8 |
| W43S-3*1250 | 3 | 0.7 | 1250 | 240 | 60 | 65 | 19 | 8 | 11 | 4.3*1.29*1.82 |
| W43S-3*1600 | 3 | 0.8 | 1600 | 240 | 65 | 70 | 17 | 8 | 15 | 4*1.5*1.9 |
| W43S-3*2500 | 3 | 0.8 | 2600 | 300 | 75 | 80 | 19 | 10 | 22 | 7*3.3*1.74 |
| W43S-6*2000 | 6 | 1.5 | 2000 | 360 | 95 | 100 | 13 | 9 | 37 | 6.6*3.53*1.75 |
